AP Wireless Bridge (APXG)

Two serial ports, one Ethernet port RS-232/422/485 to 802.11 b/g and Ethernet to 802.11 b/g Supports up to eight clients Wireless security (WPA2-Enterprise, WPA, WEP, EAP) Onboard certificate delivery and storage Plug-n-play serial to 802.11 connectivity and Ethernet to 802.11 connectivity 2 kV serial ESD surge suppression Variable DC power supply (5-36 VDC) with screw terminal connectors Extended operating temperature range (-20°C to +85°C) Airborne SpeedLink roaming for enhanced connection reliability

Model Number	Description

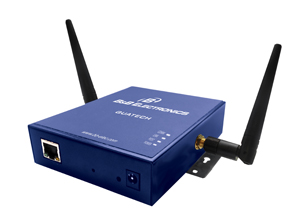

APXG-Q5420	Industrial wireless access point with RS-232/422/485 to 802.11b/g Accessories
PS-SDS	Optional 120VAC/DC power supply
ACH2-AT-DP002	2 dBi portable (Rubber duck) antenna
ACH2-AT-DP003	5 dBi portable (Rubber duck) antenna
ACH2-AT-DP011	5 dBi magnetic mount vehicle antenna

AirborneAP™ access point technology enables M2M equipment to create self sufficient WiFi networks, allowing easy access to equipment data or resources from WiFi-enabled devices, including laptops, tablets and handhelds powered by Android, iOS, or Windows. AirborneAP™ access point technology includes secure authentication using WPA2 (AES-CCMP) and a fully functional DHCP server to provide unique addresses for each authenticated client. The Airborne™ Access Point supports up to 8 clients on a local network.
